Installation Procedure

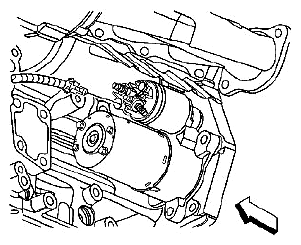

Fig 1: Identifying Starter Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Position the starter motor in the engine block.
CAUTION: Refer to FASTENER NOTICE .
Install the starter bolts.
Tightening torque

Tighten the bolts to 50 N.m (37 lb ft).

Fig 2: Identifying Engine Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the engine harness electrical connector to the starter.

Fig 3: Identifying Starter Solenoid BAT Terminal Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the starter solenoid BAT terminal nut.
Tightening torque

Tighten the nut to 10 N.m (89 lb in).
Install the front catalytic convertor. Refer to CATALYTIC CONVERTER REPLACEMENT - LEFT SIDE .
Lower the vehicle.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
