Instrument Cluster Schematics

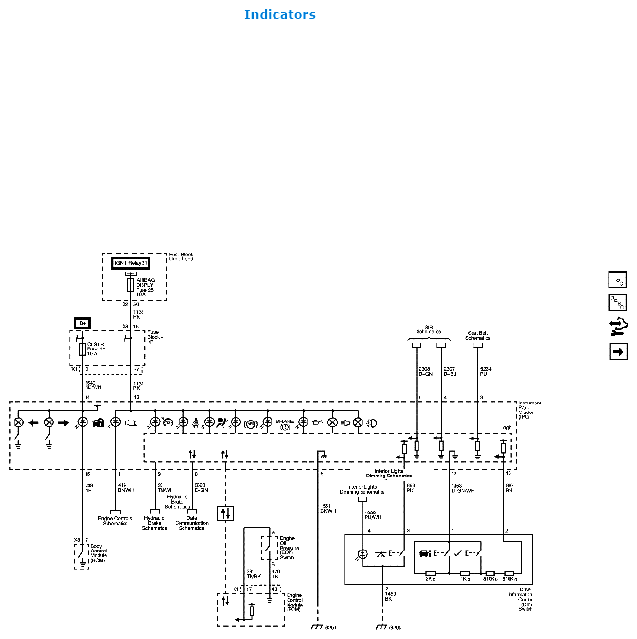

Fig 1: Indicators - (Instrument Cluster) Schematic
G05471111Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Gages - (Instrument Cluster) Schematic
G05471112Courtesy of SUZUKI OF AMERICA CORP.
