Instrument Panel Insulator Panel Replacement - Left Side

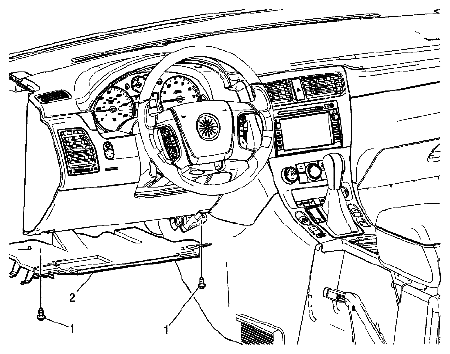

Fig 1: Identifying Instrument Panel Insulator Panel - Left Side

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Closeout/Insulator Panel Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Instrument Panel Closeout/Insulator Panel Assembly
