Instrument Panel Compartment Door Replacement

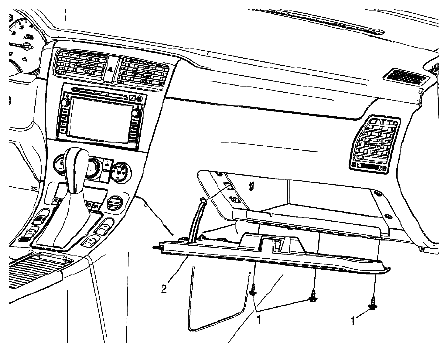

Fig 1: Identifying Instrument Panel Compartment Door

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Compartment Door Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Instrument Panel Compartment Door Assembly Procedure Disconnect the instrument panel compartment dampener from the door assembly. Feed the instrument panel compartment door stop out of the opening in the I/P compartment.
