Instrument Panel Compartment Door Lock Striker Replacement

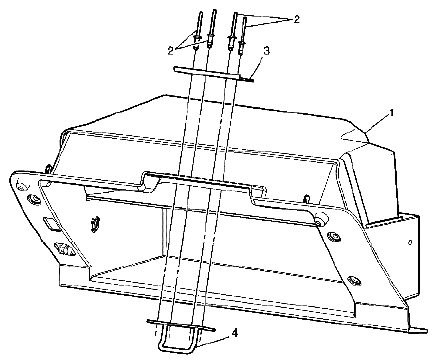

Fig 1: Identifying Instrument Panel Compartment Door Lock Striker

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Compartment Assembly Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
2	Rivets (Qty 4)
3	Instrument Compartment Striker Plate
4	Instrument Compartment Striker Assembly
