Instrument Panel Compartment Door Latch Replacement

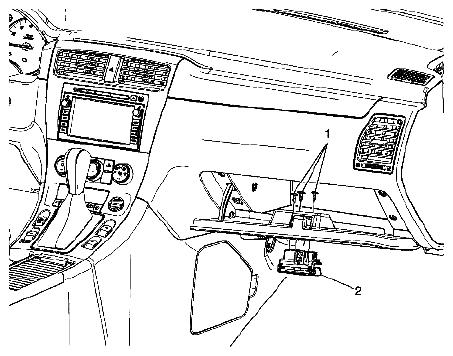

Fig 1: Identifying Instrument Panel Compartment Door Latch

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Compartment Latch Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Instrument Panel Compartment Latch Assembly
