Starting and Charging Schematics

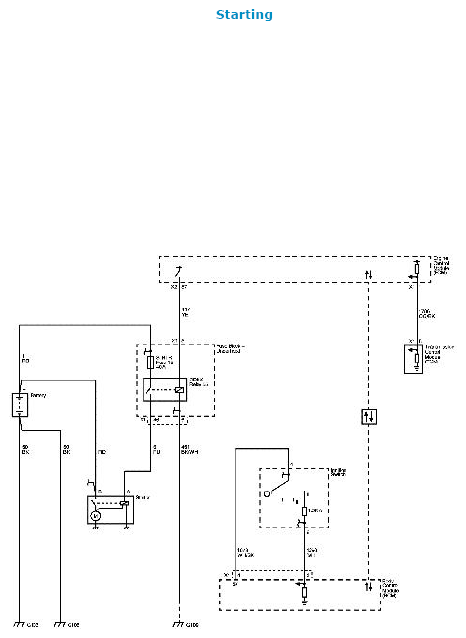

Fig 1: Starting System Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.

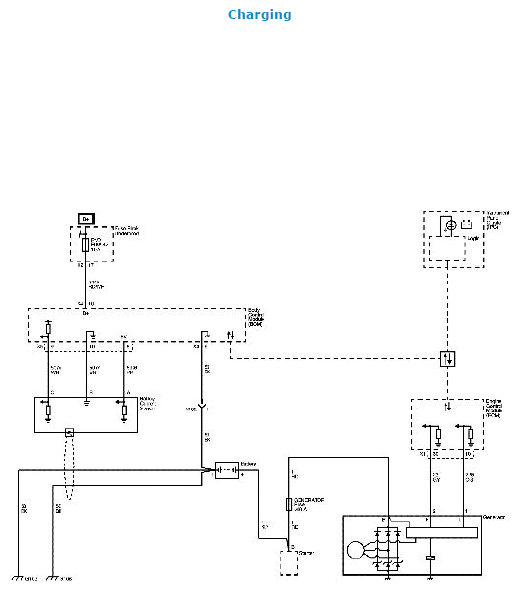

Fig 2: Charging System Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
