Removal Procedure

WARNING: Refer to BATTERY DISCONNECT CAUTION .

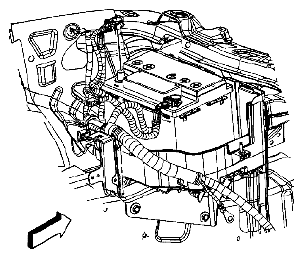

Fig 1: Identifying Engine Control Module Retainer

Courtesy of SUZUKI OF AMERICA CORP.

Record all of the customers radio station presets.
Turn OFF all the lamps and accessories.
Make sure the ignition switch is in the OFF position.
Grasp the engine control module (ECM) and slide the retainer rearward until the retainer disengages from the 4 clips on the battery cover. Reposition the ECM out of the way.

Fig 2: Identifying Side Snap Retainers And Battery Box Cover Retaining Tabs
Courtesy of SUZUKI OF AMERICA CORP.
Release the side snap retainers (1).
Remove the battery box cover (3) from the retaining tabs (2).
Remove the battery box cover (3).

Fig 3: Identifying Battery Negative Cable Terminal Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Loosen the battery negative cable terminal bolt.
Remove the battery negative cable from the battery.
