Underhood Electrical Center or Junction Block Bracket Replacement

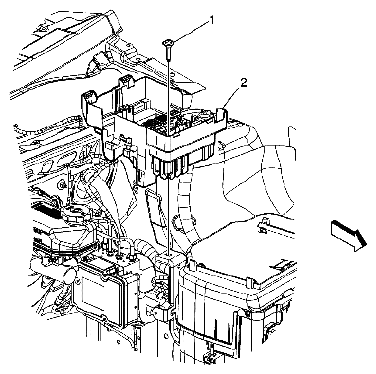

Fig 1: Identifying Underhood Electrical Center Or Junction Block Bracket Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the underhood electrical center or junction block. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
1	Underhood Electrical Center or Junction Block Bracket Bolt CAUTION: Refer to FASTENER NOTICE . Procedure  Remove the electrical connector inside the block before removing the bracket. Tightening torque  20 N.m (15 lb ft)
2	Underhood Electrical Center or Junction Block Bracket
