Rear Wheel Drive Module Clutch Housing Replacement

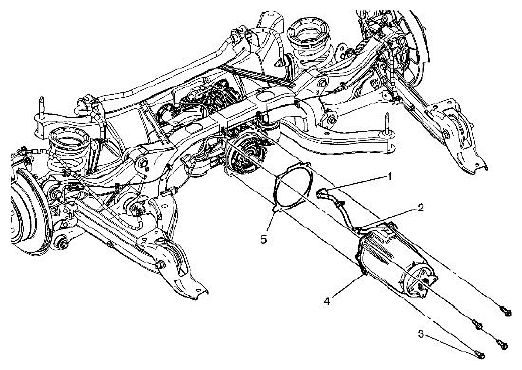

Fig 1: Identifying Rear Wheel Drive Module Clutch Housing Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure  Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the propeller shaft from the differential clutch drum assembly. Refer to PROPELLER SHAFT REPLACEMENT .
1	Electrical Clutch Control Connector
2	Retaining Clip (Qty: 2)
3	Differential Clutch Drum Bolt (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tip:  Relocate the rear portion of the propeller shaft to the side and support it with mechanics wire or equivalent. Tightening torque  29 N.m (21 lb ft)
4	Differential Clutch Drum Procedure  Rear differential clutch control module recalibration, refer to CONTROL MODULE REFERENCES . Tip:  The pinion flange, dust cover and pinion nut are serviced with the differential clutch drum assembly.
5	Differential Clutch Drum Gasket Tip:  Apply a small amount of grease to the gasket to hold it in place.
