Rear Differential Clutch Control Module Replacement

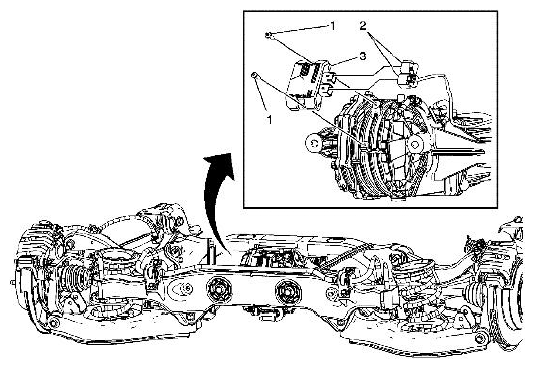

Fig 1: Identifying Rear Differential Clutch Control Module Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the spare tire. Remove the muffler assembly. Refer to MUFFLER REPLACEMENT . Remove the rear differential assembly. Refer to DIFFERENTIAL REPLACEMENT .
1	Clutch Drum Control Module Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  15 N.m (11 lb in).
2	Clutch Drum Control Module Connector
3	Clutch Drum Control Module Procedure  Program the differential clutch control module. Refer to CONTROL MODULE REFERENCES .
