Differential Carrier Assembly Mount Replacement

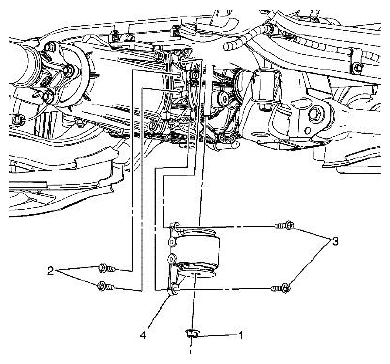

Fig 1: Identifying Left Rear Differential Mount Nut, Left Rear Differential Mount Bolt And Left Rear Differential Mount
COMPONENT SPECIFICATION
| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . |
|
| 1 | Left Rear Differential Mount Nut
CAUTION:
Refer to FASTENER NOTICE
. Tip: Support the rear differential with a jack stand. Tightening torque 122 N.m (90 lb ft) |
| 2 | Left Rear Differential Mount Bolt (Qty: 2) Tightening torque 29 N.m (21 lb ft) |
| 3 | Left Rear Differential Mount Bolt (Qty: 2) Tightening torque 29 N.m (21 lb ft) |
| 4 | Left Rear Differential Mount |
