Antilock Brake System Schematics

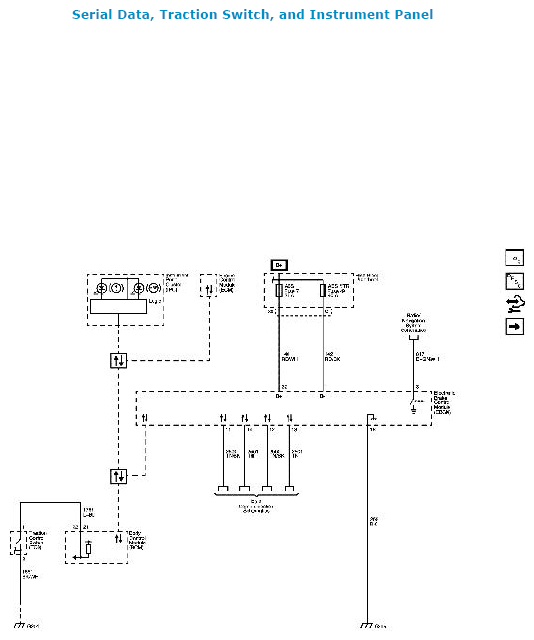

Fig 1: Serial Data, Traction Switch, And Instrument Panel - Schematic And Routing Diagram

Courtesy of SUZUKI OF AMERICA CORP.

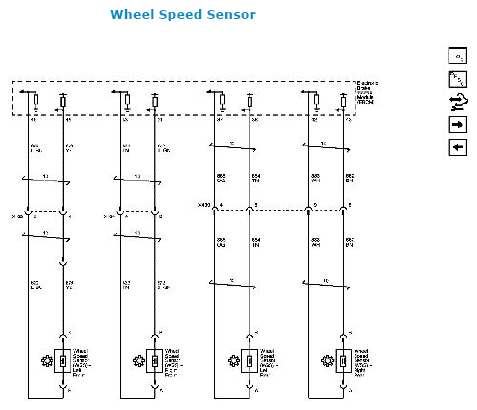

Fig 2: Wheel Speed Sensor - Schematic And Routing Diagram

Courtesy of SUZUKI OF AMERICA CORP.

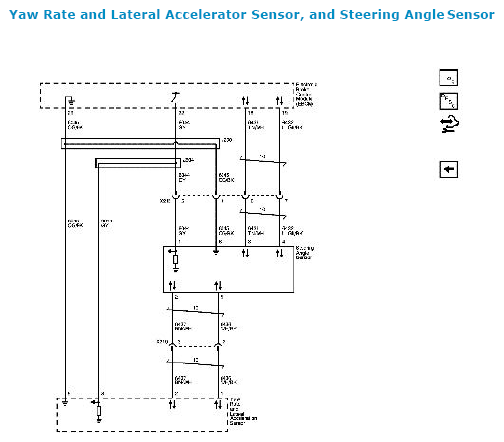

Fig 3: Yaw Rate And Lateral Accelerator Sensor, And Steering Angle Sensor - Schematic And Routing Diagram

Courtesy of SUZUKI OF AMERICA CORP.
