Brake Pressure Modulator Valve Bracket Replacement

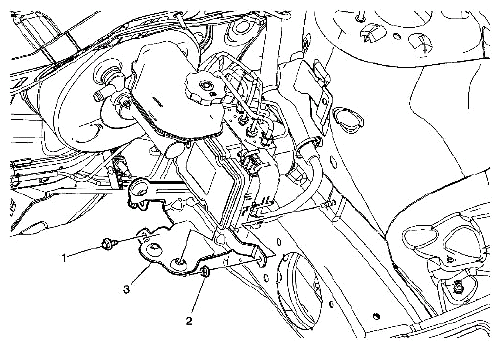

Fig 1: Identifying Brake Pressure Modulator Valve Bracket Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedures  Place the ignition switch in the OFF position. Remove the underhood electrical center bracket. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK BRACKET REPLACEMENT .
1	Brake Modulator Assembly Bracket Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque  20 N.m (15 lb ft)
2	Brake Modulator Assembly Bracket Nut (Qty: 2) Tightening torque  10 N.m (89 lb in)
3	Brake Modulator Assembly Bracket Tip:  Without disconnecting the brake pipe fittings, carefully remove and support the brake modulator assembly.
