Removal Procedure

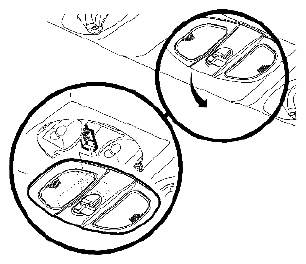

Fig 1: Pulling Reading Lamp Cover
G05471415Courtesy of SUZUKI OF AMERICA CORP.
  1. Pull gently at front of reading lamp cover to disengage retaining clips.
  2. Rotate cover rearward until rear attaching hooks are released.
  3. Disconnect sunroof switch harness from sunroof switch.
    Fig 2: Identifying Sunroof Switch Fasteners And Sunroof Switch
    G05471416Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove sunroof switch fasteners and remove sunroof switch.
