Rear Seat Shoulder Belt Opening Bezel Replacement

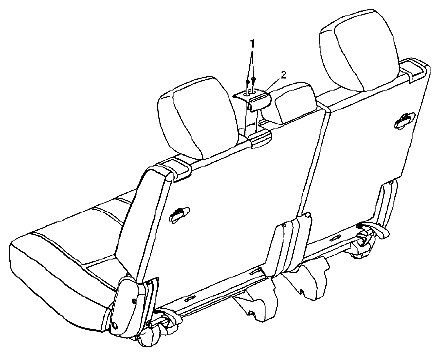

Fig 1: Identifying Rear Seat Shoulder Belt Opening Bezel And Screws

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the rear center seat belt bolt. Refer to SEAT BELT REPLACEMENT - CENTER REAR .
1	Rear Seat No. 1 Back Shoulder Belt Opening Bezel Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tip:  Lift up the seat belt to access the screws. Tightening torque  2 N.m (18 lb in)
2	Rear Seat No. 1 Back Release Handle Tip:  The bezel is integral to the rear center seat belt assembly and must be replaced as an assembly.
