Removal Procedure

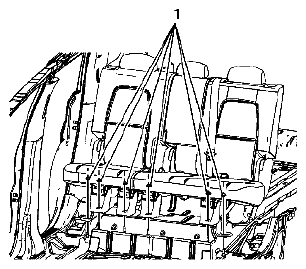

Fig 1: Identifying Rear Seat Bolts

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE

Insert a M10 bolt (1) with 45 mm (1.77 in) of thread into the weld nut located on the upper pivot bracket of the outboard pivot assembly.
Tightening torque

Tighten the bolts to 15 N.m (11 lb ft) .

Fig 2: Identifying Stud Caps And Attachment Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the stud caps and the 6 attachment nuts (1) from the front and side risers of the seat.

Fig 3: Identifying Latch Release Strap And Floor Latches
Courtesy of SUZUKI OF AMERICA CORP.
Pull the latch release strap (1) at the rear of the seat to release the floor latches (2).
Remove the seat from the vehicle.
