Rear Seat Latch Finish Cover Replacement

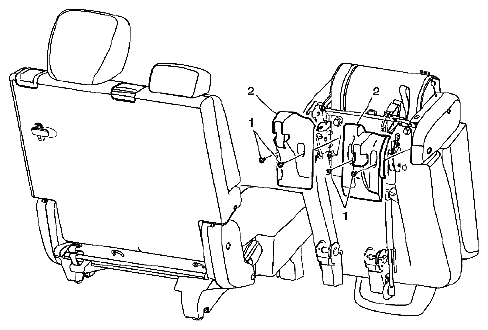

Fig 1: Identifying Rear Seat Latch Finish Cover Components
G05471361Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
1 Rear Seat No. 1 Latch Finish Cover Screw (Qty: 4)
CAUTION: Refer to FASTENER NOTICE .

Tip:  Fold and tumble the seat forward to access the screws and cover.
Tightening torque
2 N.m (18 lb in)
2 Rear Seat No. 1 Latch Finish Cover (Qty: 2)
