Rear Seat Front Riser Finish Cover Replacement

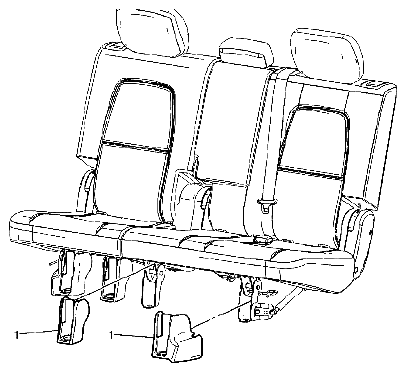

Fig 1: Identifying Rear Seat Front Riser Finish Cover
G05471342Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
1 Rear Seat Riser Front Finish Cover (Qty: 4)
Tip:  Pull forward and upward to remove.
