Rear Seat Back Filler Panel Replacement

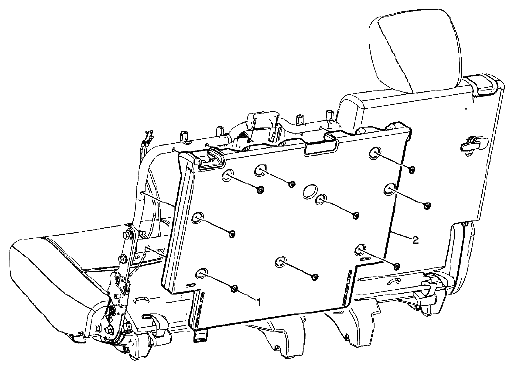

Fig 1: Identifying Rear Seat Back Filler Panel Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to REAR SEAT REPLACEMENT . Loosen the seat back cover from the seat back filler panel. It is hooked into the slots of the panel. Slide the rear seat back cover up the seat back enough to gain access to the seat back filler panel screws.
1	Rear Seat No. 1 Back Panel Screw (Qty: 9) CAUTION: Refer to FASTENER NOTICE . Tightening torque 9 N.m (80 lb in)
2	Rear Seat No. 1 Back Panel
