Rear Seat Armrest Replacement

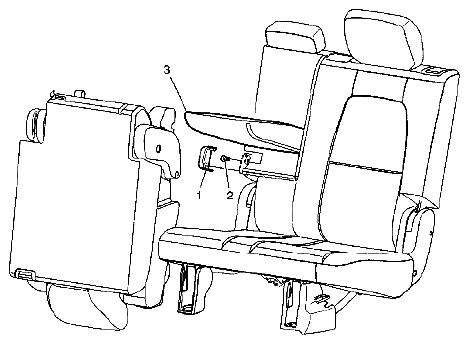

Fig 1: Identifying Rear Seat Armrest, Pivot Bolt And Finish Cover

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Rear Seat Armrest Finish Cover Procedure Remove the screw that holds the finish cover in place.
2	Rear Seat Armrest Pivot Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 10 N.m (89 lb in)
3	Rear Seat Armrest
