Power Seat Switch Replacement

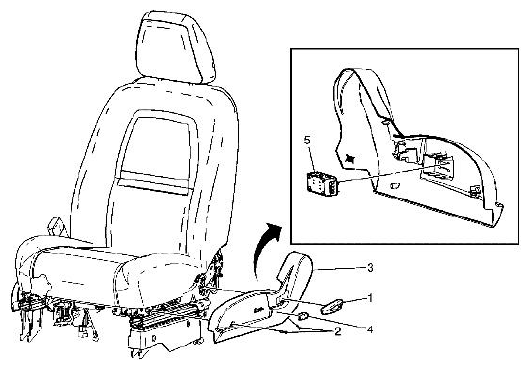

Fig 1: Identifying Power Seat Switch Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Front Seat Outer Adjuster Finish Cover Tip: Disconnect the electrical connector.
4	Front Seat Adjuster Switch Knob Tip: Using a flat-bladed tool, remove the knob from the seat switch.
5	Front Seat Adjuster Switch Tip: Use a small flat-bladed tool to remove the switch from the trim panel.
