Lumbar Support Knob Replacement

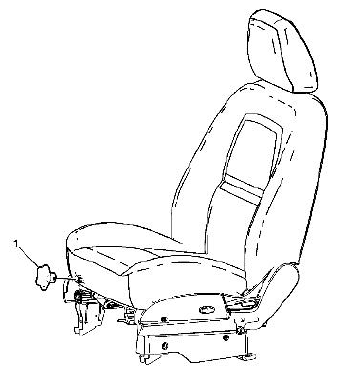

Fig 1: Identifying Lumbar Support Knob
G05471325Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
1 Front Seat Manual Lumbar Knob
Tip:  Remove the lumbar knob by pulling firmly on the knob.
