Front Seat Head Restraint Guide Replacement (Non Fold Flat)

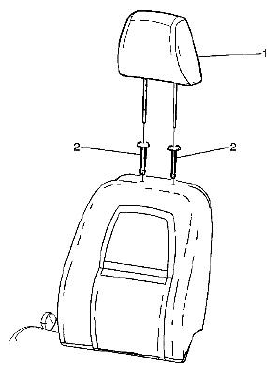

Fig 1: Identifying Front Seat Head Restraint And Guide (Non Fold Flat)

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Front Seat Head Restraint Refer to FRONT SEAT HEAD RESTRAINT REPLACEMENT .
2	Front Seat Head Restraint Guides Procedure  Disconnect the lower J-hook retainer from the seat back trim cover. Carefully pull up the trim cover, disengaging the hook and loop retainers, until the headrest guides are exposed. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.
