Front Seat Head Restraint Guide Replacement (Fold Flat)

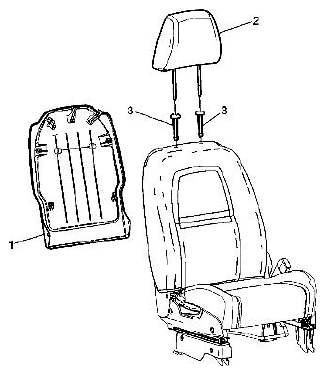

Fig 1: Identifying Front Seat Head Restraint And Guide (Fold Flat)

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Seat Back Cushion Finish Panel Refer to DRIVER SEAT AND PASSENGER SEAT BACK CUSHION FINISH PANEL REPLACEMENT (FOLD FLAT) .
2	Front Seat Head Restraint Refer to FRONT SEAT HEAD RESTRAINT REPLACEMENT .
3	Front Seat Head Restraint Guides Tip:  Squeeze the bottom of the guides together and push upward to remove.
