Front Seat Back Recliner Inner Trim Panel Replacement (Fold Flat)

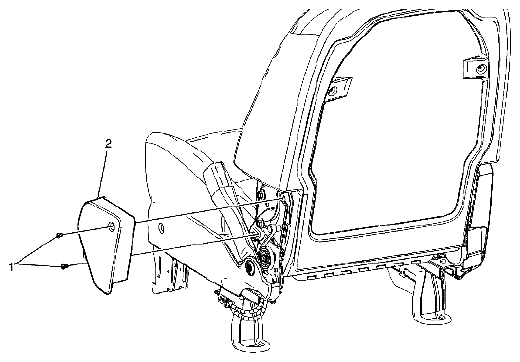

Fig 1: Identifying Front Seat Back Recliner Inner Trim Panel And Screws

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Front Seat Inner Recliner Finish Panel Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Front Seat Inner Recliner Finish Panel
