Removal Procedure

  1. Remove the front door upper trim panel extension. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .

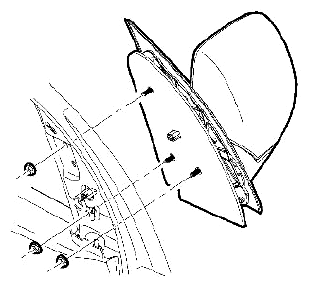

    Fig 1: Removing Outside Rearview Mirror And Nuts
    G05471247Courtesy of SUZUKI OF AMERICA CORP.
  2. Disconnect the mirror electrical connector, if equipped.
  3. Remove the mirror to door nuts.
  4. Remove the mirror from the door.
