Windshield Upper Garnish Molding Replacement

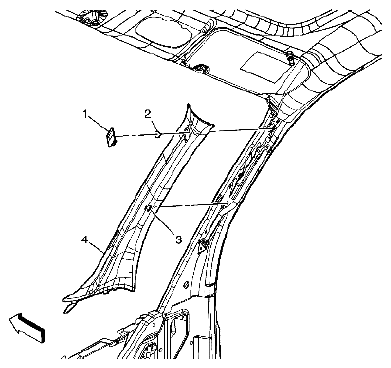

Fig 1: Identifying Windshield Upper Garnish Molding Components

Courtesy of SUZUKI OF AMERICA CORP.

WINDSHIELD UPPER GARNISH MOLDING COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR DISABLING AND ENABLING
1	Windshield Side Garnish Molding Cover
2	Windshield Side Garnish Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque 9 N.m (80 lb in)
3	Windshield Garnish Molding Assembly Procedure Starting at the top, gently pull on the garnish molding to disengage the clip.
4	Retainer Clip (Qty: 1)
