Front Floor Console Armrest Replacement

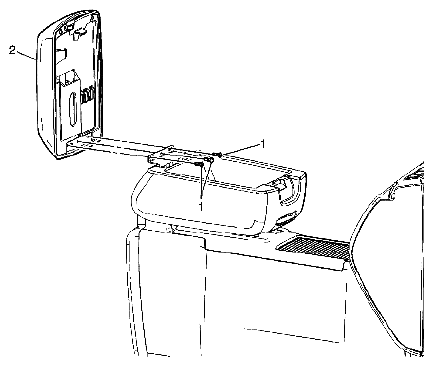

Fig 1: Identifying Console Armrest Assembly Screw And Console Armrest Assembly

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR CONSOLE ARMREST COMPONENTS REFERENCE

Callout	Component Name
1	Console Armrest Assembly Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE Tightening torque 2 N.m (18 lb in)
2	Console Armrest Assembly
