Rocker Panel Molding Replacement

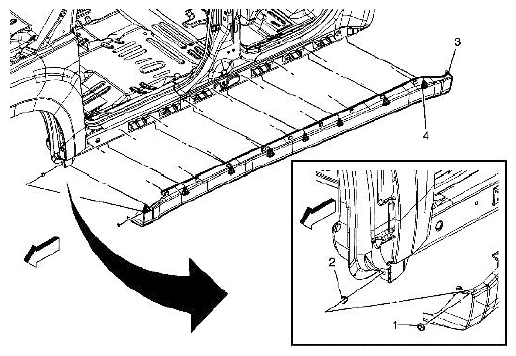

Fig 1: Identifying Rocker Panel Molding Screw And Nut

Courtesy of SUZUKI OF AMERICA CORP.

ROCKER PANEL MOLDING DESCRIPTION

Callout	Component Name
1	Rocker Panel Molding Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Rocker Panel Molding Nut
3	Rocker Panel Integral Clip (Qty: 9)
4	Rocker Panel Molding Integral Retainer (Qty: 8) Tip: Remove the rocker panel from the vehicle by prying the clips away from the vehicle. Retainers break easily, install new retainers as necessary.
