Rear Side Door Window Frame Rear Applique Replacement

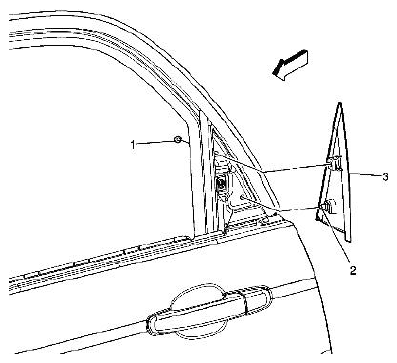

Fig 1: Identifying Rear Side Door Window Frame Rear Applique Screw And Clip

Courtesy of SUZUKI OF AMERICA CORP.

REAR SIDE DOOR WINDOW FRAME REAR APPLIQUE DESCRIPTION

Callout	Component Name
Preliminary Procedure  Remove the rear door trim panel. Refer to REAR SIDE DOOR TRIM PANEL REPLACEMENT .
1	Rear Side Door Window Frame Rear Applique Screw Tightening torque  5 N.m (44 lb in)
2	Rear Side Door Window Frame Rear Applique Clip Tip:  Replace the clip if damaged, transfer the clip to the new part.
3	Rear Side Door Window Frame Rear Applique
