Rear Side Door Window Frame Front Applique and Front Channel Replacement

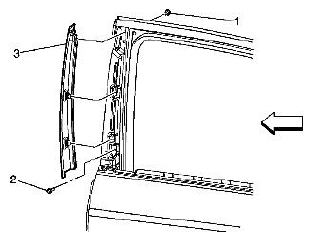

Fig 1: Identifying Rear Side Door Front Frame Applique Assembly And Screw

Courtesy of SUZUKI OF AMERICA CORP.

REAR SIDE DOOR WINDOW FRAME FRONT APPLIQUE AND FRONT CHANNEL DESCRIPTION

Callout	Component Name
1	Rear Side Door Front Frame Applique Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Rear Side Door Front Frame Applique Assembly
