Liftgate Emblem/Nameplate Replacement

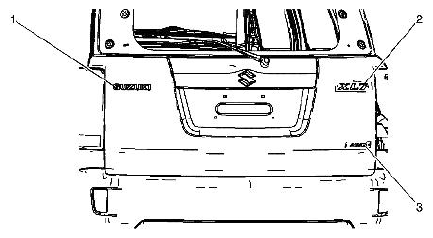

Courtesy of SUZUKI OF AMERICA CORP. LIFTGATE EMBLEM NAMEPLATE DESCRIPTION
| Callout |
Component Name |
| Special Tool |
J 25070 Heat Gun |
| 1 |
Liftgate Name Plate Assembly (Suzuki)
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
|
| 2 |
Liftgate Nameplate Assembly (XL7)
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing new emblem.
|
| 3 |
Liftgate Name Plate Assembly (AWD)
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
|
