Front Wheelhouse Liner Replacement

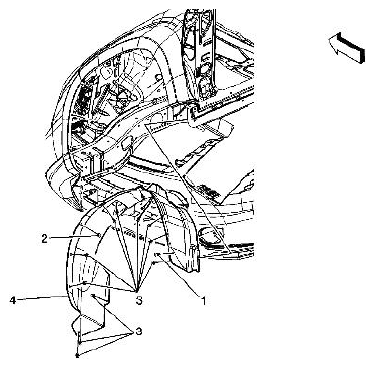

Fig 1: Identifying Front Wheelhouse Liner Screw And Bolt

Courtesy of SUZUKI OF AMERICA CORP.

FRONT WHEELHOUSE LINER DESCRIPTION

Callout	Component Name
Preliminary Procedure Remove the tire/ wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1	Front Wheelhouse Liner Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque 6 N.m (53 lb in)
2	Front Wheelhouse Liner Bolt Tightening torque 10 N.m (89 lb in)
3	Front Wheelhouse Liner Plastic Retainers (Qty: 13)
4	Front Wheelhouse Liner
