Front Door Frame Applique Replacement

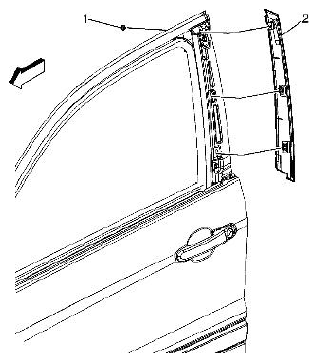

Fig 1: Identifying Front Door Frame Applique Assembly And Screw
G05471701Courtesy of SUZUKI OF AMERICA CORP.
FRONT DOOR FRAME APPLIQUE DESCRIPTION

Callout Component Name
1 Front Side Door Frame Applique Screw
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Front Side Door Frame Applique Assembly
Tip:  Clean around the edge of the outer door frame with a mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
