Engine Splash Shield Replacement - Right Side

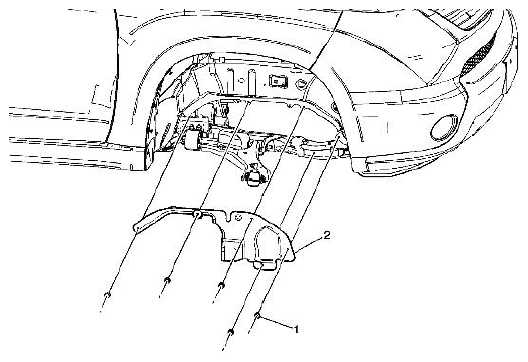

Fig 1: Identifying Engine Splash Shield Plastic Retainers - Right Side
G05471685Courtesy of SUZUKI OF AMERICA CORP.
ENGINE SPLASH SHIELD DESCRIPTION

Callout Component Name
Preliminary Procedure
Remove the front tire/ wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1 Right Engine Splash Shield Plastic Retainers (Qty: 5)
2 Right Engine Splash Shield
