Engine Splash Shield Replacement - Left Side

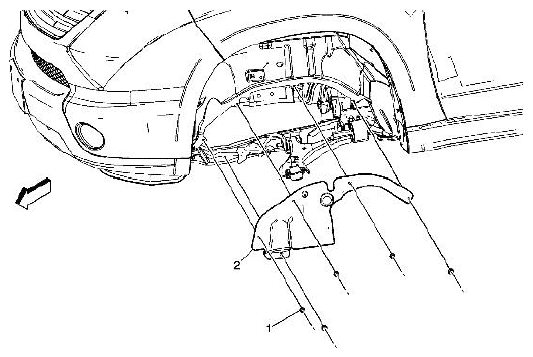

Fig 1: Identifying Engine Splash Shield Plastic Retainers - Left Side
G05471684Courtesy of SUZUKI OF AMERICA CORP.
ENGINE SPLASH SHIELD DESCRIPTION

Callout Component Name
Preliminary Procedure
Remove the front tire/ wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1 Left Engine Splash Shield Plastic Retainers (Qty: 5)
2 Left Engine Splash Shield
