Rear Side Door Lock Striker Replacement

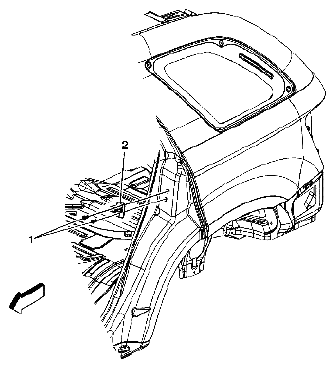

Fig 1: Identifying Rear Side Door Lock Striker And Bolts

Courtesy of SUZUKI OF AMERICA CORP.

REAR SIDE DOOR LOCK STRIKER REFERENCE

Callout	Component Name
1	Rear Side Door Latch Striker Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 25 N.m (18 lb ft)
2	Rear Side Door Latch Striker Procedure Ensure the spacer is in place. Ensure proper alignment after installation. Refer to REAR SIDE DOOR LOCK STRIKER ADJUSTMENT .
