Removal Procedure

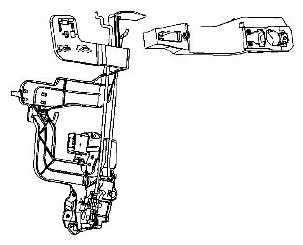

Fig 1: Removing Rear Door Window Regulator Module

Courtesy of SUZUKI OF AMERICA CORP.

Remove the rear door window regulator module. Refer to REAR SIDE DOOR WINDOW REGULATOR REPLACEMENT .
Disconnect the outside handle rod from the latch.

Fig 2: Removing Outside Handle Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the outside handle bracket.
Disconnect the latch electrical connector.

Fig 3: Disconnecting Latch Arm From Window Regulator Module
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the latch arm from the window regulator module by depressing the tab and sliding rearward.
Disconnect the inside handle rod and lock button rod by twisting the latch.

Fig 4: Twisting Latch Arm To Removing
Courtesy of SUZUKI OF AMERICA CORP.
Remove the latch from the latch arm by twisting.
