Opening the Liftgate Without Electrical Power

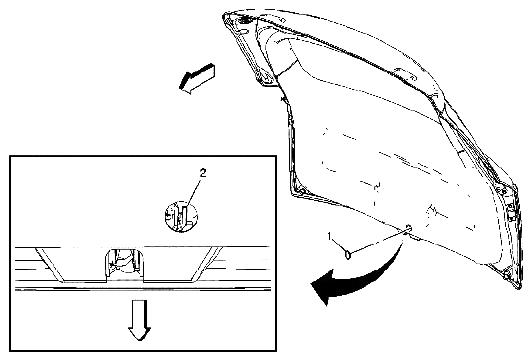

Fig 1: Identifying Liftgate Latch Access Hole Plug And Liftgate Latch Manual Release Lever

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE LATCH REFERENCE

Callout	Component Name
1	Liftgate Latch Access Hole Plug Tip: Use a trim panel removal tool to remove the trim plug.
2	Liftgate Latch Manual Release Lever. Tip: Use a screwdriver to push the manual release lever.
