Door Lock Switch Replacement

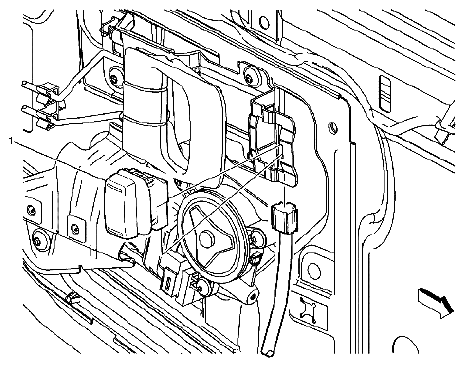

Fig 1: Identifying Door Lock Switch

Courtesy of SUZUKI OF AMERICA CORP.

DOOR LOCK SWITCH REFERENCE

Callout	Component Name
Preliminary Procedure Remove front door extension trim panel. Refer to UPPER EXTENSION TRIM PANEL REPLACEMENT (FRONT SIDE DOOR) . Remove front door handle bezel. Refer to DOOR HANDLE BEZEL REPLACEMENT . Remove front door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .
1	Front Side Door Locking System Switch Assembly Disconnect electrical connector. Use a flat-bladed tool to pry switch from door handle assembly.
