Wiper/Washer Schematics

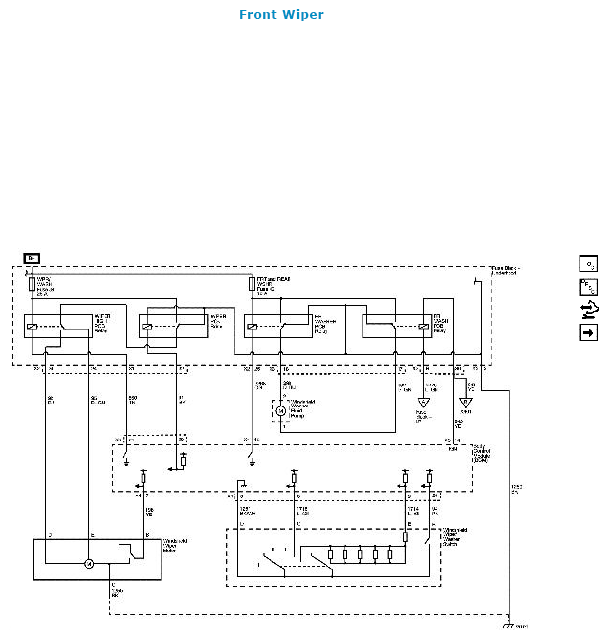

Fig 1: Front Wiper/Washer Schematic
G05471146Courtesy of SUZUKI OF AMERICA CORP.

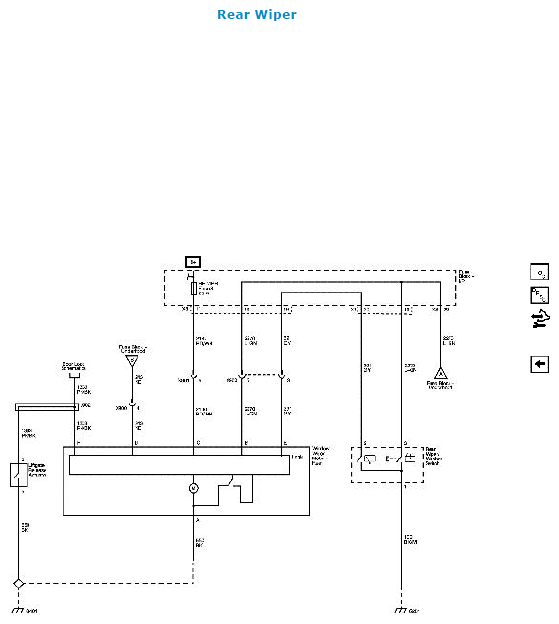

Fig 2: Rear Wiper/Washer Schematic
G05471147Courtesy of SUZUKI OF AMERICA CORP.
