Windshield Washer Nozzle Replacement

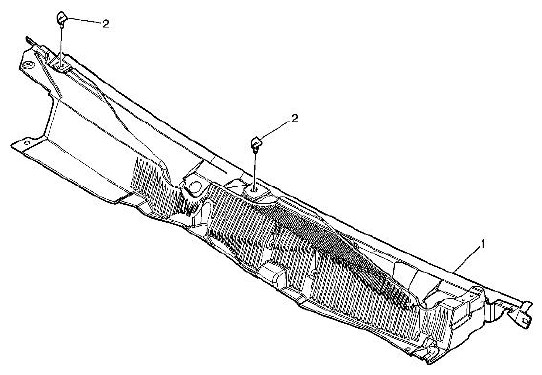

Fig 1: Identifying Air Inlet Grille Panel Assembly And Windshield Washer Nozzle

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
CAUTION: Refer to FASTENER NOTICE . Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - WIPERS/WASHER SYSTEMS .
1	Air Inlet Grille Panel Assembly Refer to AIR INLET GRILLE PANEL REPLACEMENT .
2	Front Windshield Washer Nozzle (Qty: 2) Tip: Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille.
