Windshield Washer Hose Replacement

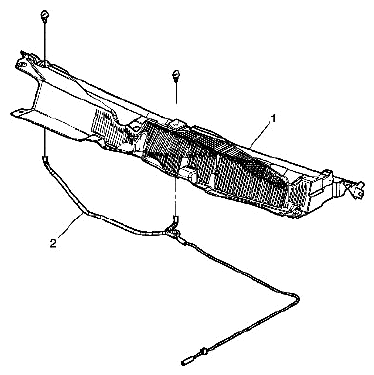

Fig 1: Identifying Air Inlet Grille Panel Assembly And Windshield Washer Hose Front

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
CAUTION: Refer to FASTENER NOTICE . Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - WIPERS/WASHER SYSTEMS .
1	Air Inlet Grille Panel Assembly Refer to AIR INLET GRILLE PANEL REPLACEMENT .
2	Windshield Washer Hose Front Tip: Separate the front washer nozzle hose from the front washer solvent container hose that runs along the upper motor compartment rail.
