Rear Window Wiper Arm Replacement

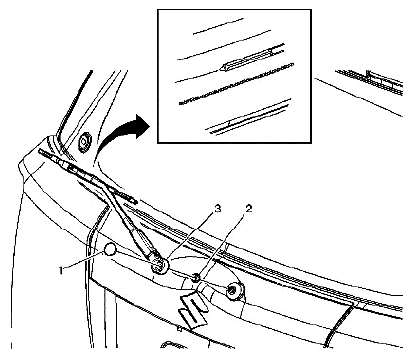

Fig 1: Identifying Rear Window Wiper Arm Proper Installation Positions

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Rear Wiper Arm Nut Finish Cap
2	Rear Wiper Arm Nut CAUTION: Refer to FASTENER NOTICE . Tip: Hold the blade tip on the first defroster grid line while torquing the wiper arm nut. Tightening torque 10 N.m (89 lb in)
3	Windshield Washer Arm Assembly Position wiper blade assembly above the blackout strip as shown in the illustration. Position the blade element on the first defroster grid line, above the blackout. Secure the nut. Install the rear wiper arm nut finish cap. Operate the windshield wipers and inspect for proper operation.
