Radio Rear Speaker Replacement

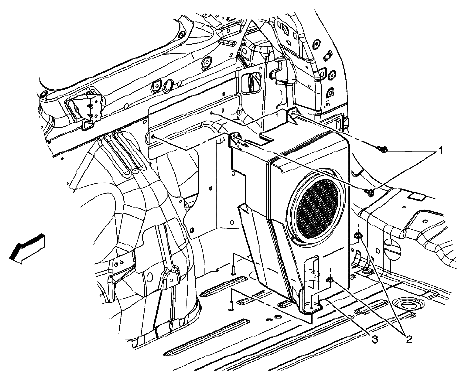

Fig 1: Identifying Radio Rear Speaker Bolts And Nuts

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
Preliminary Procedures Remove the right rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
1	Radio Rear Compartment Speaker Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2.5 N.m (22 lb in)
2	Radio Rear Compartment Speaker Nut (Qty: 2) Tightening torque 2.5 N.m (22 lb in)
3	Radio Rear Compartment Speaker Procedure Disconnect the electrical connectors. Transfer the amplifier assembly to the new speaker.
