Radio Rear Side Door Speaker Replacement

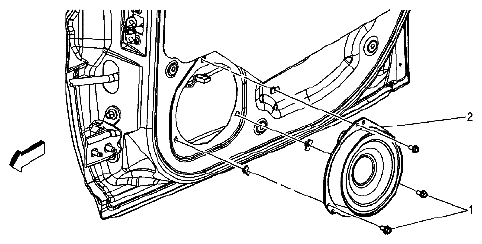

Fig 1: Identifying Radio Rear Side Door Speaker Screws

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
Preliminary Procedure Remove the rear door inner trim panel. Refer to REAR SIDE DOOR TRIM PANEL REPLACEMENT
1	Rear Door Speaker Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE Tightening torque 2.5 N.m (22 lb in)
2	Rear Door Speaker Procedure Disconnect the electrical connector.
