Radio Front Side Door Upper Speaker Replacement

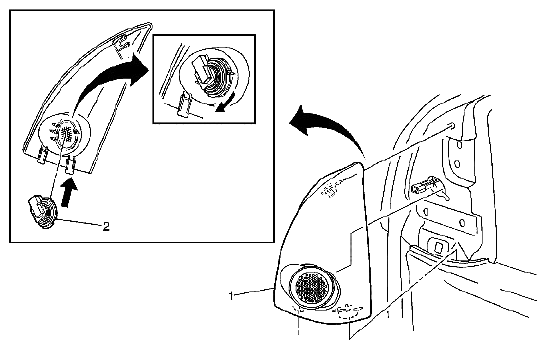

Fig 1: Identifying Radio Front Side Door Upper Speaker

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
1	Front Door Trim Panel Upper Extension Procedure  Pull at the top of the trim panel to disengage the trim clip. Lift up to remove the lower tabs from behind the door trim. Disconnect the speaker wiring harness.
2	Front Door Upper Speaker Procedure  Rotate and remove the tweeter from the trim panel.
