Radio Front Side Door Speaker Replacement

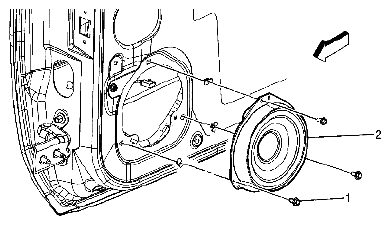

Fig 1: Identifying Radio Front Side Door Speaker Screw

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
Preliminary Procedure Remove the front door inner trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT
1	Front Door Speaker Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE Tightening torque 2.5 N.m (22 lb in)
2	Front Door Speaker Procedure Disconnect the electrical connector.
