Digital Radio Receiver Replacement

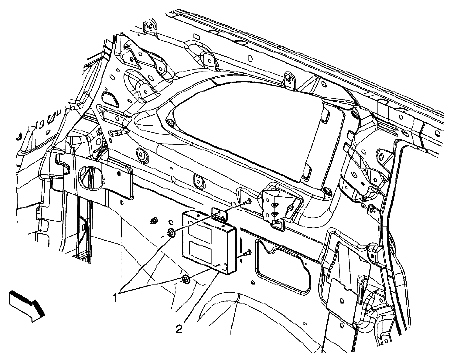

Fig 1: Identifying Digital Radio Receiver Assembly And Nut

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
Preliminary Procedure Remove the left rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT
1	Digital Radio Receiver Nut (Qty: 4) Tightening torque 4 N.m (35 lb in)
2	Digital Radio Receiver Assembly Procedure Disconnect the antenna and electrical connection. Reprogram the digital radio receiver after replacement. Refer to CONTROL MODULE REFERENCES
